Ritter Ultimate Comfort

A smart practical solution

Larry Behandlungseinheit schwenkbar
Larry Behandlungseinheit schwenkbar

In no time a perfect Win-Win solution

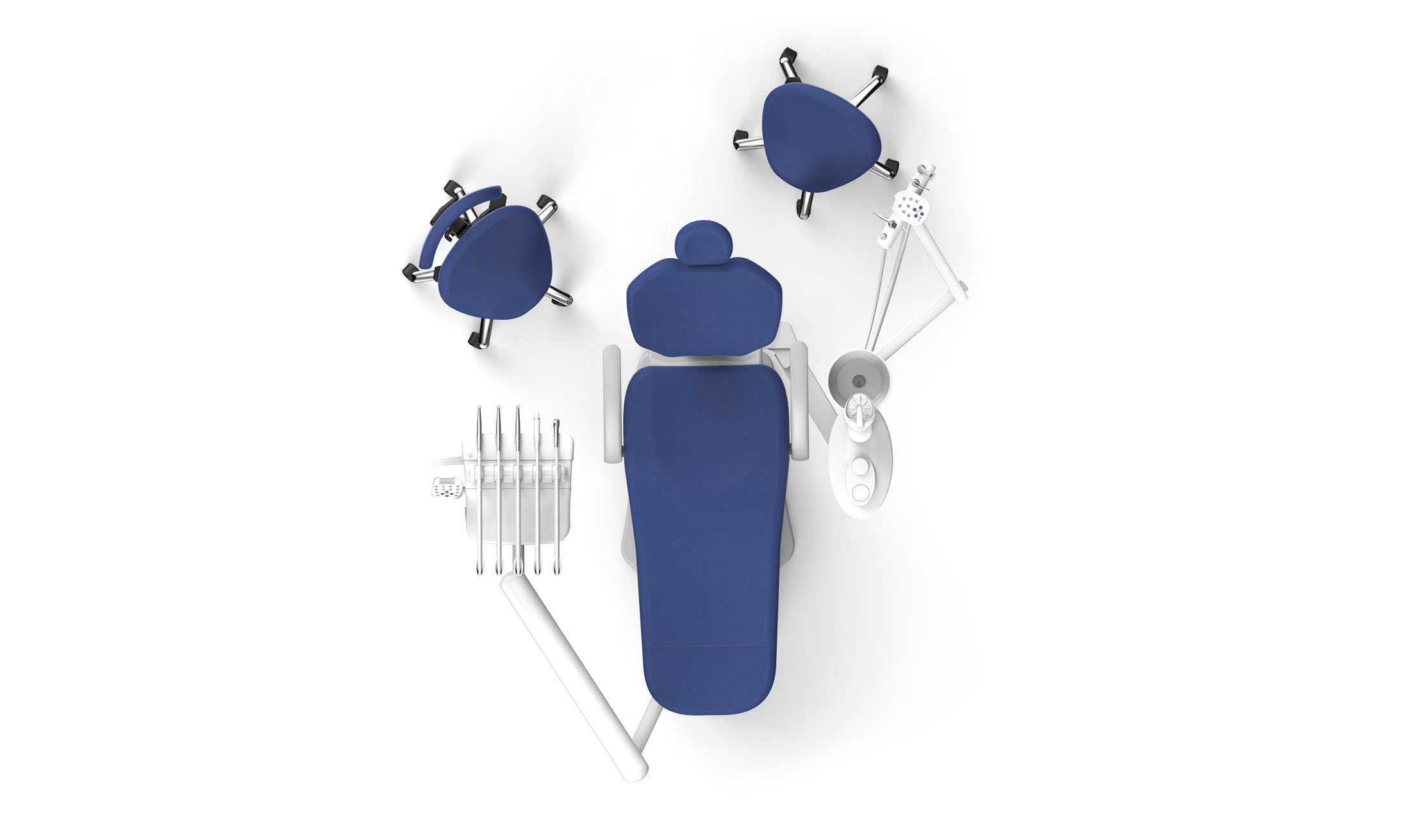

RITTER_UC_right-left-dental-unit_2022

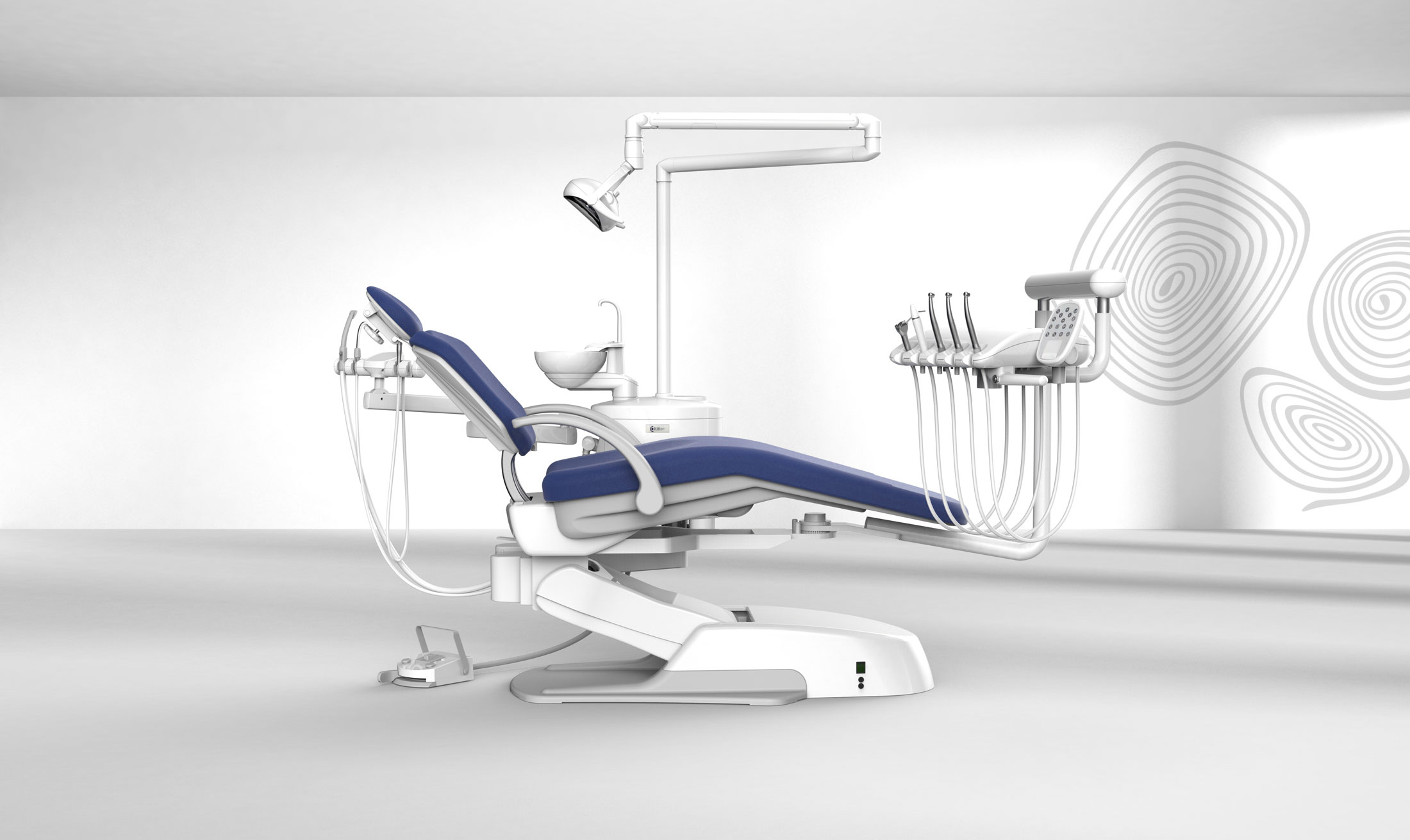

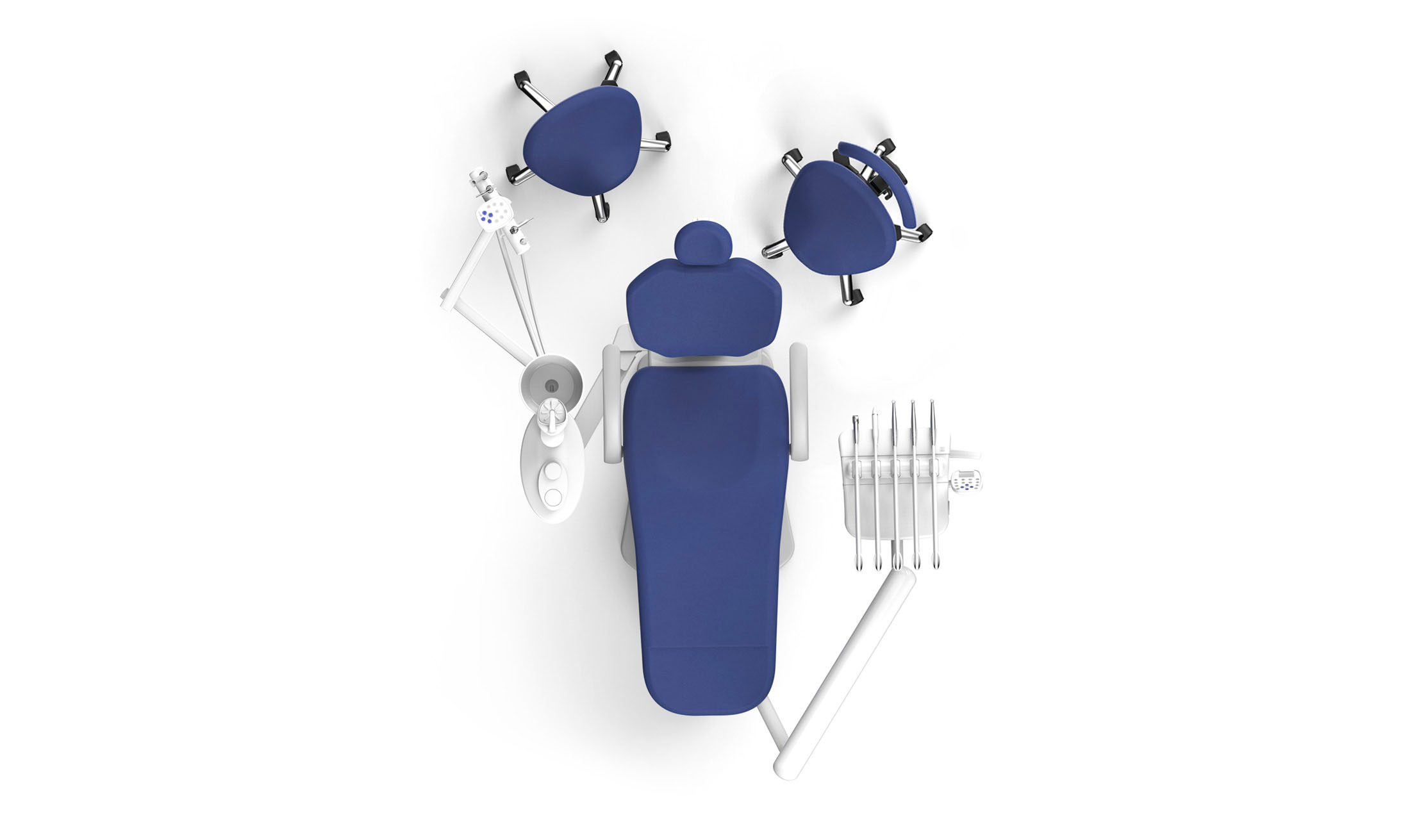

RITTER_UC-rechts-links-dentale-behandlungseinheit_2022

Ritter Ultimate Comfort

Patient chair

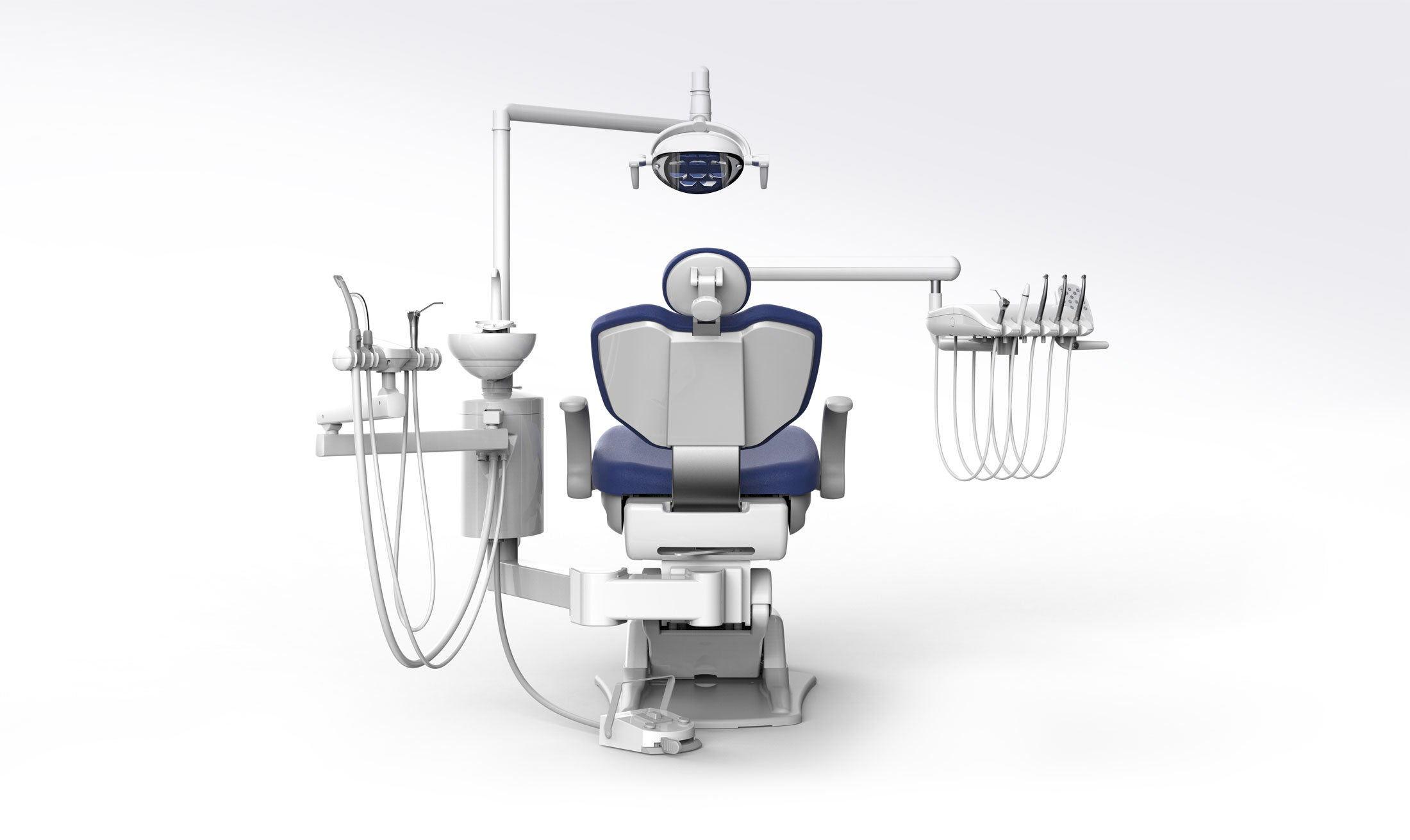

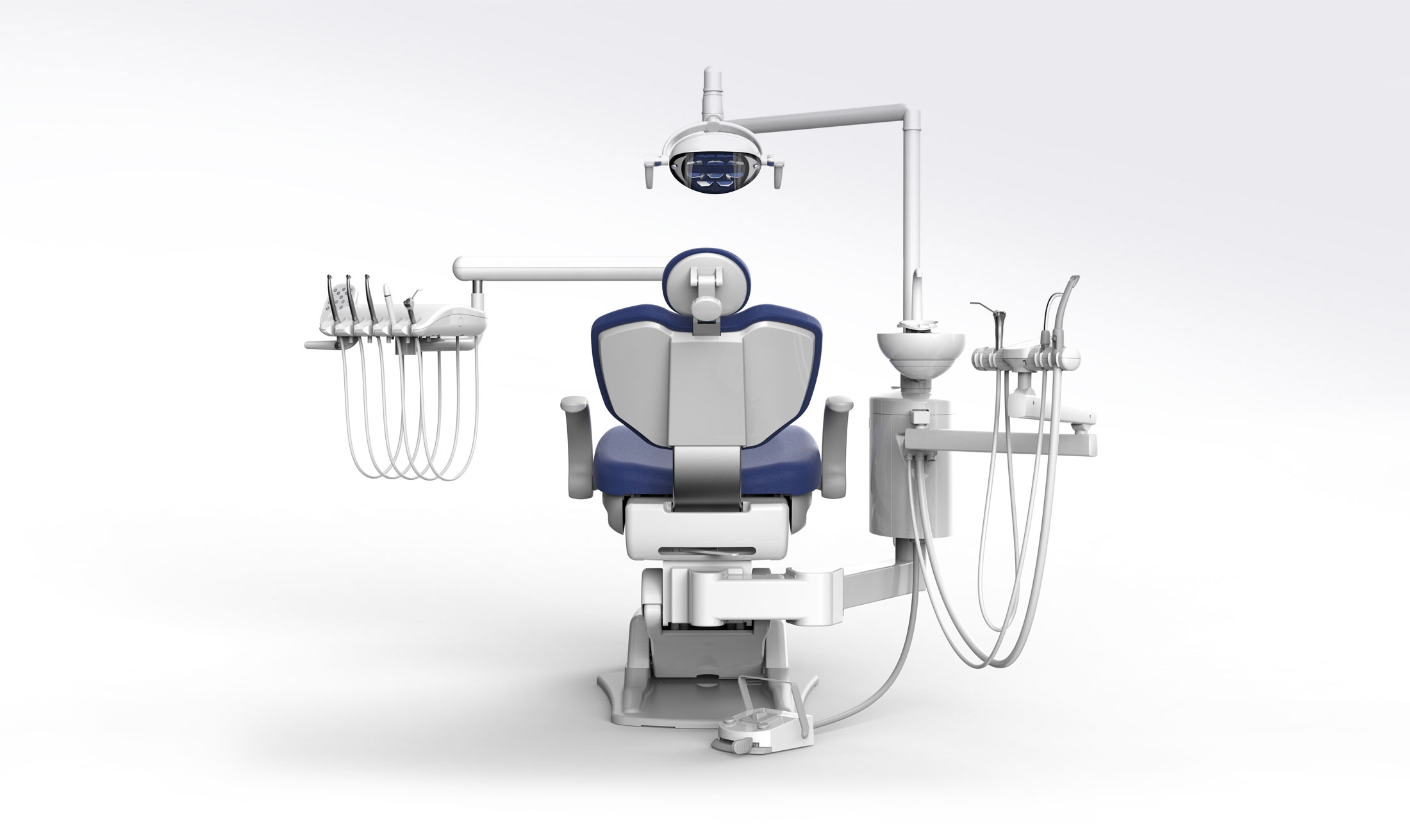

Left and right swivable

The left and right swivable unit can be switched from right hand use to left hand use very easily.

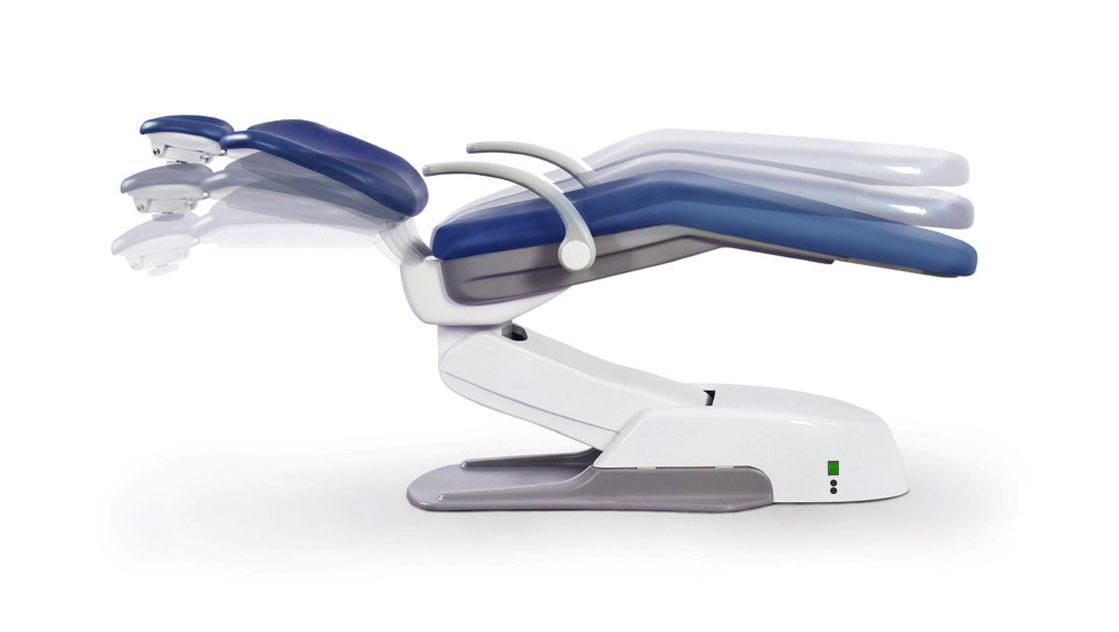

The patient chair is synchronized – available as electric version and has a 30° chair movement for easy access.

The unit has a memory-system

  • spittoon position
  • last position
  • light off / light on

The water unit has a self-contained clean water system. The multifunctional foot pedal control system is easy to use and supports an excellent workflow.

The Ultimate Comfort is outstanding ergonomic and efficient for the daily use.

Patient chair
  • Electric chair movement for fast and quiet movements
  • Ergonomic design for comfortable seating also during long treatments
  • Broad space for dentist‘s legs
  • High-quality leather upholstery
  • Chair swivel 30° left/right
  • 4 programmable chair positions, plus last position
  • Auto return function : If the safety switch is activated, the chair automatically goes up for a few cm
  • Safety switches
  • Trendelenburg movement: Seat and backrest movement synchronized
  • Left and right armrest
  • Double-articulated headrest

The patient chair
in perfect position for you
and your patients.

Your patient chair can be adjusted

optimally for all treatment scenarios

between a lowest position of 400 mm

and a highest position of 800 mm.

(Distance between upholstery to floor)

Ritter Ultimate Comfort

Upholstery Colors

Everyone has their favorite color
- we have the most beautiful.

The Ritter Ultimate Comfort colour scheme provides creative versatility to suit your style, and is accentuated by the bright white of the body of the device.

Ritter Ultimate Comfort

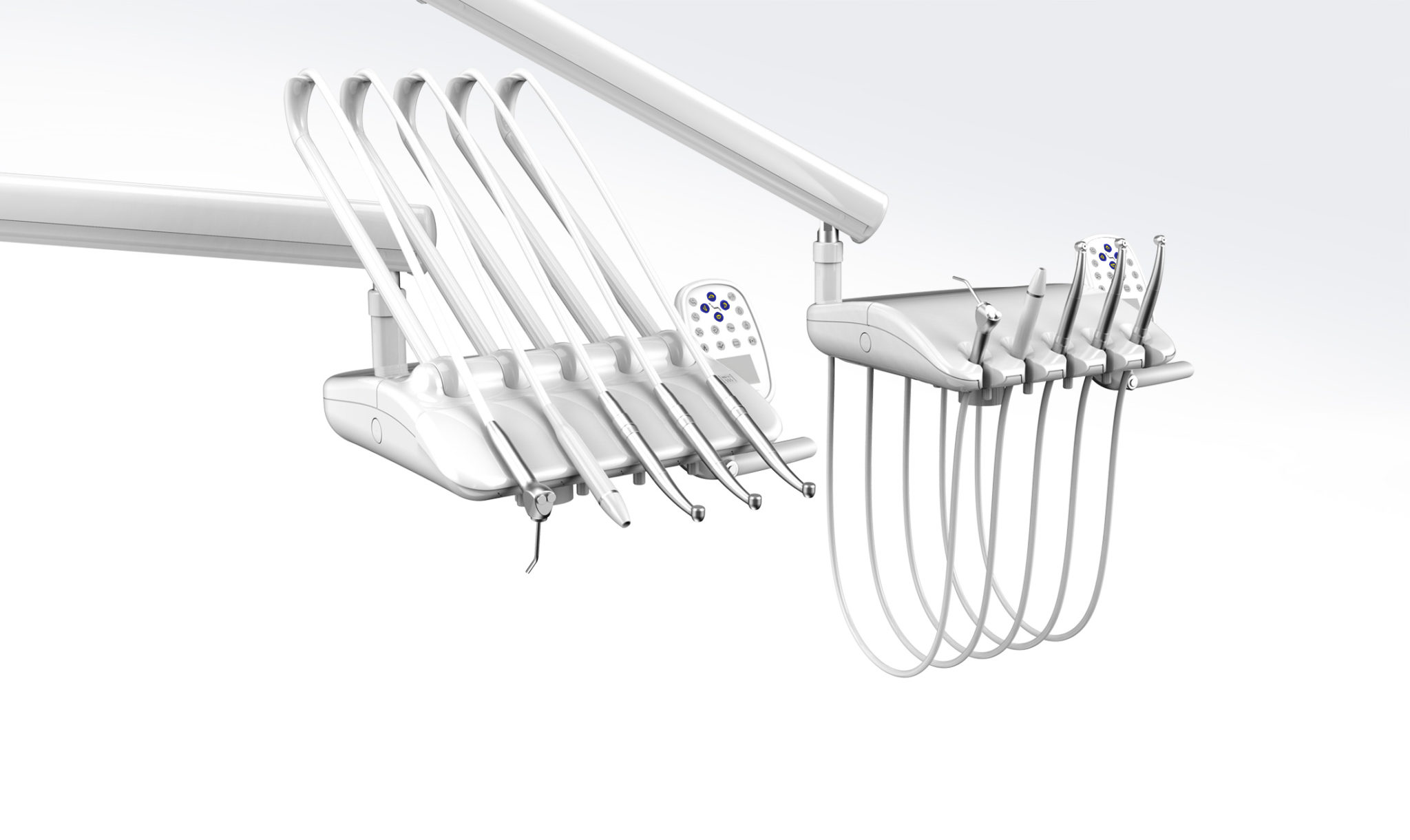

Dentist Elements

Easy to use and efficient treatments:
Two different versions are available depending on personal preference, allowing easy adjustment of the instruments.

CONTROL PANEL

  • Control panel with X-ray viewer
  • 5 programmable chair positions including rinsing position, exit position and emergency position
  • Removable silicone base for easy cleaning and disinfection (S-version)

Ritter Ultimate Comfort

Assistant Element

  • Integrated control panel
  • Up to 4 instruments
  • Small and large suction hoses
  • 3F syringe
  • Curing light
  • Double jointed and adjustable arm movement

Ritter Ultimate Comfort

Operating Lights

Eva LED

Ritter Ultimate Comfort

Operating Lights

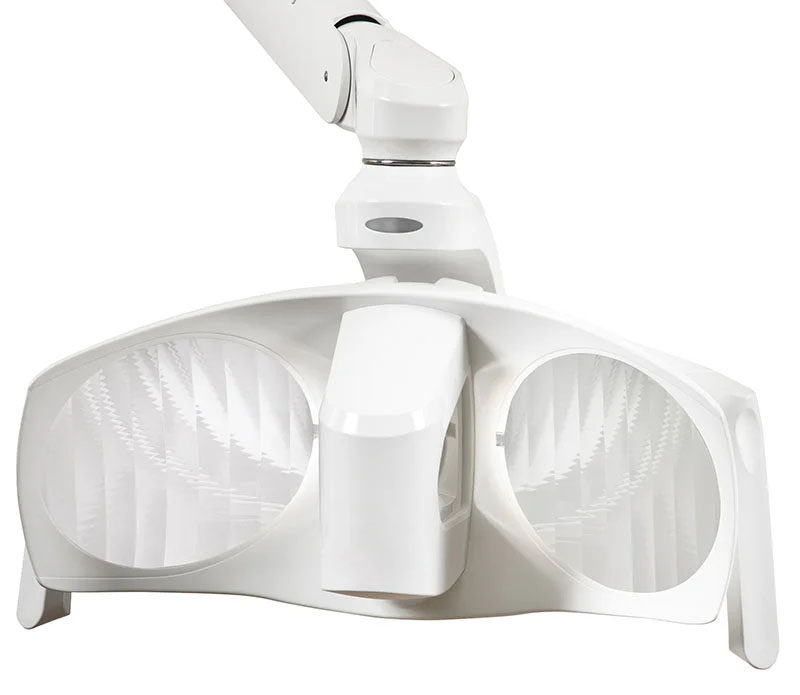

EVA LED with switch / sensor

  • Illuminance: 50.000 Lux
  • Color temperatures: 5.700, 5.000, 4.000 or 2.700 Kelvin
  • CRI >95, for improved color and light perception
  • The light field is 19×10 cm at 70 cm distance
  • Optional protective cover with patient mirror
  • Control lamp – visual feedback of illumination strength and color temperature

Ritter Ultimate Comfort

Operating Lights

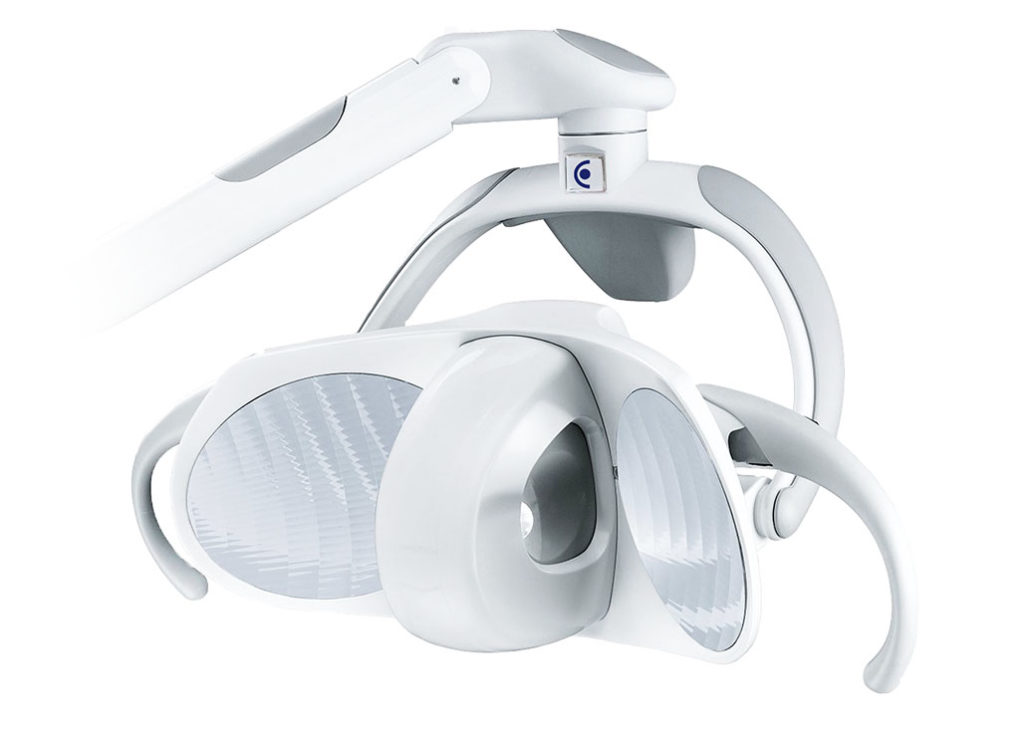

MAIA with Sensor

  • Illuminance: 3.000-45.000 Lux
  • Constant color temperature of 5.000 Kelvin
  • Shadow-free illumination
  • Removable, sterilizable handles
  • Constant color intensity

Ritter Ultimate Comfort

Operating Lights

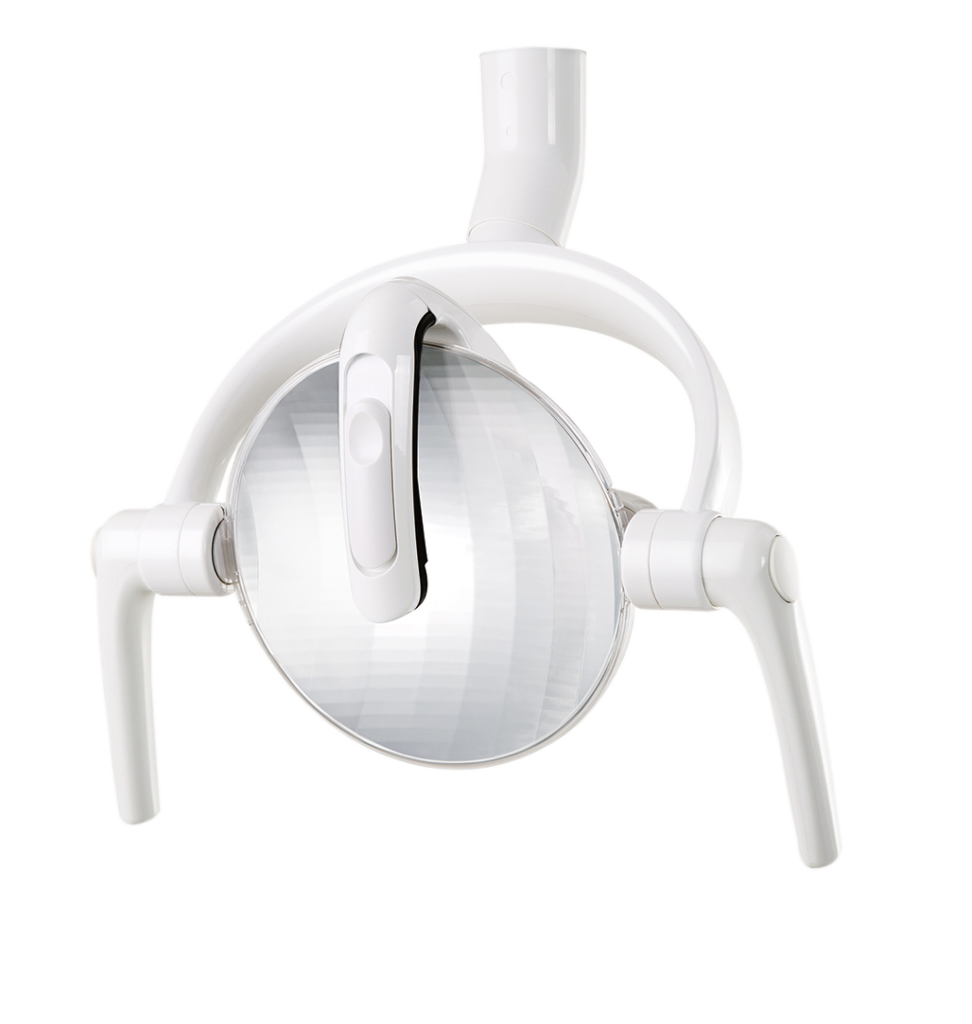

V2 LED Operating Lamp

  • Illuminance: 8.000 to 30.000 Lux
  • Yellow filter
  • Sensor switch – light on/off by hand movement
  • Low heat emission
  • Precise illumination of the working area

Ritter Ultimate Comfort

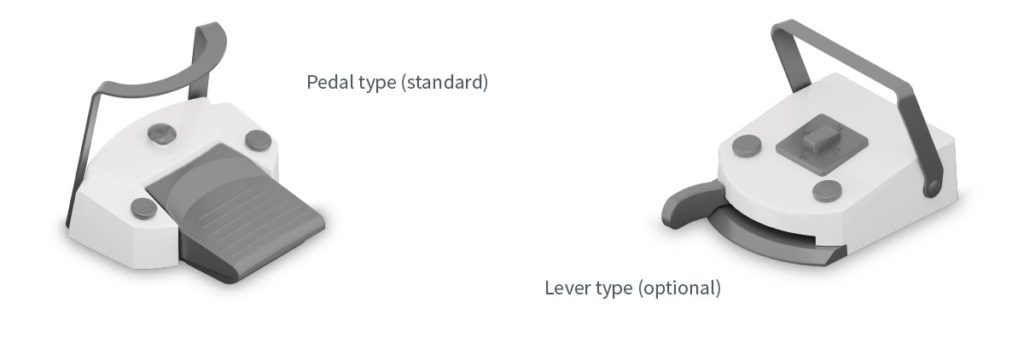

Foot Controller

Modern design for chair movement and instruments
  • Large handle for easy repositioning
  • Manual control of chair movements
Program control of chair movements
  • Rinsing position/last treatment position
  • Programmable chair position: A, B, Emergency
  • Entry/exit position
Control of the instruments
  • Speed/power control for the active instrument
  • Individual spray water on/off mode for each instrument line
Buttons
  • Spray water for instruments
  • Chip blower function

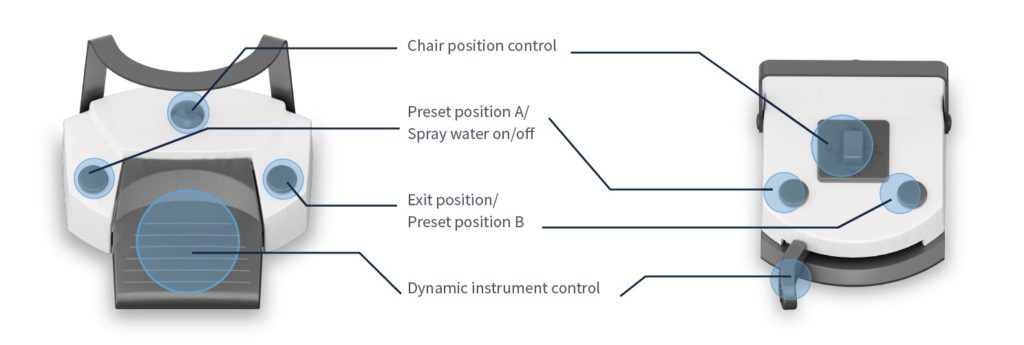

Ritter Ultimate Comfort Foot Controller functions

Ritter Ultimate Comfort

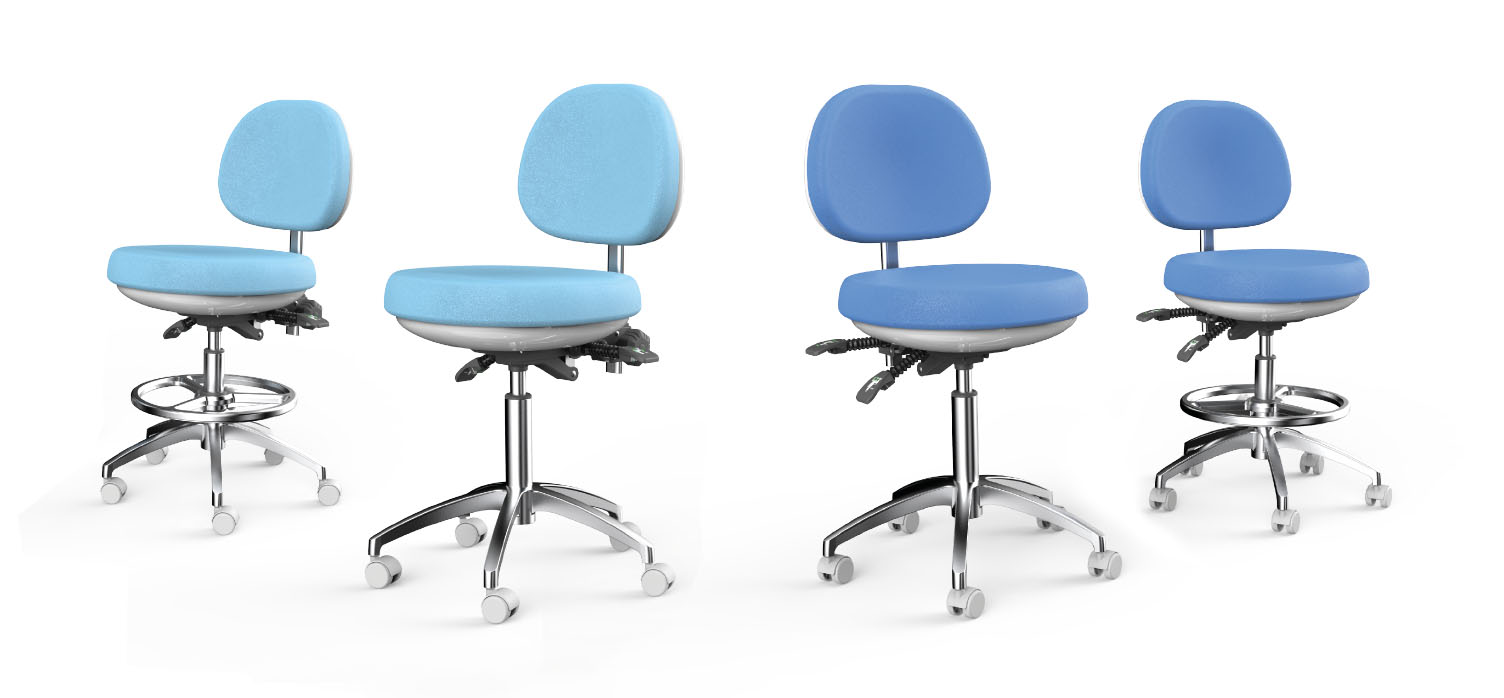

Dental Stool

MobiloFlex 60
MobiloFlex 60 with footring

  • Backrest with fixed position or dynamic movement
  • Ergonomic and comfortable seat
  • Symmetrical backrest
  • Gas lift cylinder
  • Chrome-plated base
  • Five double castors for stability
  • Color coordinated upholstery
  • Available with or without foot ring
Mobiloflex_60 Dentist

Ritter Ultimate Comfort

Features and options

●   Standard        ○   Option

Patient Cair

●   Synchronized
●   Left/right-handed version, 30° chair movement
●   Right armrest movable
●   Left and right armrest movable
●   Two-jointed headrest
●   Multifunctional foot control with pedal

Dentist Element

●   X-ray image viewer
●   3 F.O. without light (Midwest)
●   1x 3F syringe
●   Double tray carrier

Assistant element

●   Adjustable assistant arm
●   Control panel
●   1x 3F syringe
●   Small and large suction hoses

Water unit

●   Mounted on the chair
●   Venturi system (air/water)
●   Movable mouth rinsing basin
●   Heating for cup filler
●   Ceramic spittoon with automatic cup filler and bowl rinsing
●   Water bottle system

Work lights

○   LED dental light MAIA with sensor
○   LED dental light Ritter Standard
○   EVA LED with switch

Stool

○   MobiloFlex 60
