Contact World
Contact Lite Comfort
Ritter Contact Series
Professional elegance
ALL-ROUND FUNCTIONAL
• Innovative instrument control with graphic display, numerous user settings and memory functions for perfect handling
• Simple, intuitive programming of chair positions, presets such as speed and maximum speed of motors, turbines and intensity of the ZEG
• Create up to 4 different user levels, e.g. for 4 practitioners
• Sophisticated 4-pedal foot control with control of all main functions for quick and easy operation
• Hygienic and very easy-to-clean smooth surfaces save time and effort
• Large knee and legroom for practitioners allows them to work ergonomically and without fatigue
QUALITY - MADE IN GERMANY
The Contact series is predominantly made of metal and painted throughout. Installation, service and maintenance are extremely simple thanks to easy access and clearly arranged components. A perfect blend of utility, function and aesthetics has been created with clarity and elegance, making the Contact series one of the most beautiful dental units on the market worldwide.
DIMENSIONS
All versions of the Contact series have the perfect dimensions – even for smaller practice rooms. With an operating radius of approx. 2×3 m, the units adapt perfectly to any working environment. The task lights are mounted on the unit or alternatively available as a ceiling version.
Note: A total of 2 connection points (1 standard/1 alternative) offer additional flexibility so that the unit can be installed in any treatment room.
Ritter Contact Series
Patient chair
SEATING COMFORT IN A LEAGUE OF EXCELLENCE
The Ritter Contact series meets all requirements for optimized patient positioning during treatment. The anatomically shaped and tilt-adjustable seat allows for back-friendly sitting and lying.
• Simultaneous movement (Trendelenburg): The footrest of the Ritter patient table rises synchronously with the backrest inclination.
• Optimal, safe and comfortable positioning even in difficult treatment situations. The patient does not have to slide during the transition to the lying position and thus does not interfere with the treatment process.
• Compact, space-saving design
• Seamless, easy-to-disinfect upholstered surfaces
• Flexible control via foot pedal and function display
• Table height:
• Contact World 35-85 cm, Contact Lite Comfort: 46-82 cm
• Optional: Right armrest can be folded forwards
The patient chair of the Contact World is also available with Visco-Soft padding, which adapts individually to the shape of the body.
TRUST IS A MATTER OF MIND
The relative position of the patient couch and headrest is maintained even if the height and inclination of the patient couch are changed.
The patient remains relaxed, allowing the position to be changed more frequently without subjecting the spine to critical permanent stress.

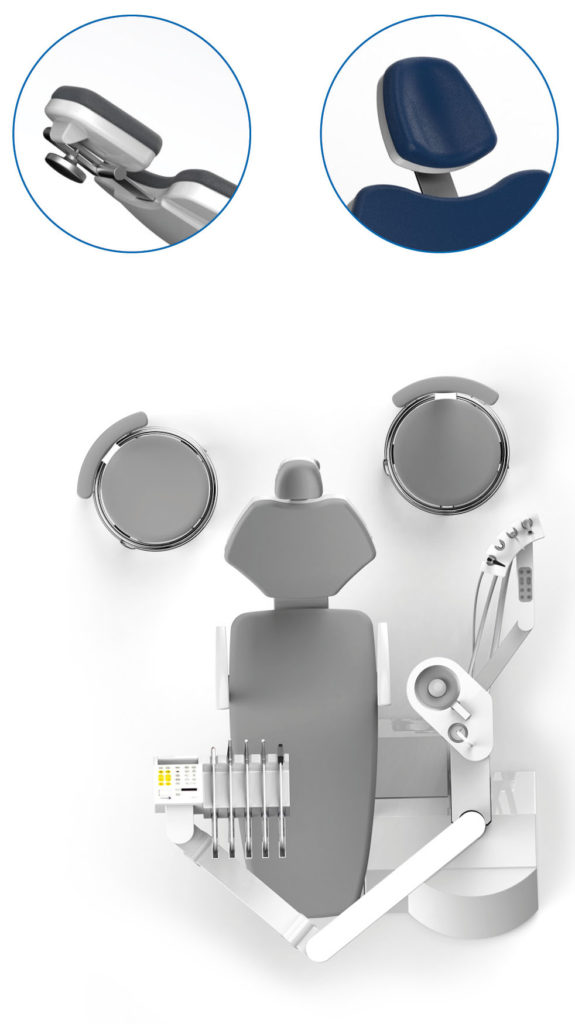

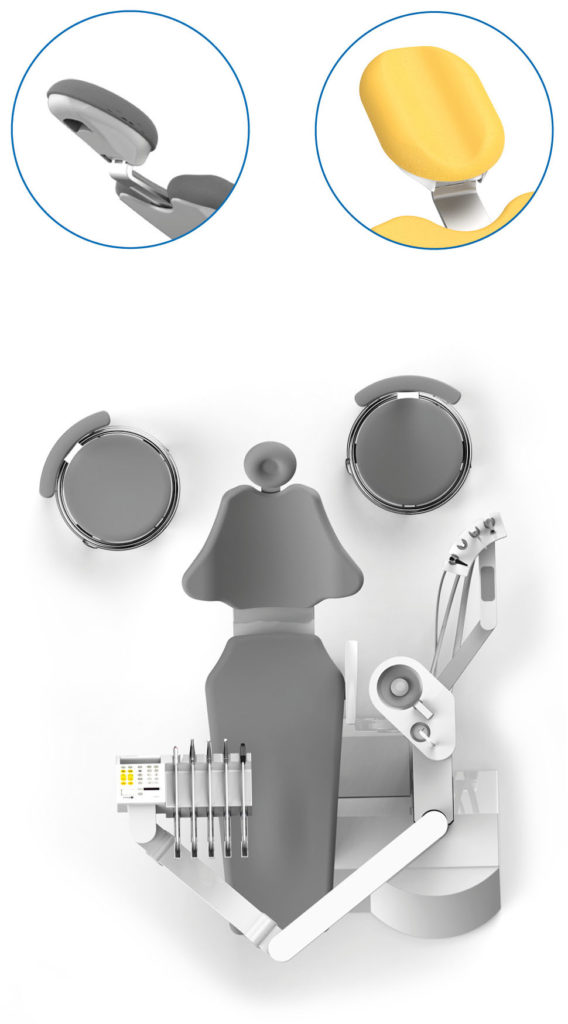

CONTACT WORLD
• Single-jointed headrest with oblong upholstery
• Quick and easy positioning with just one hand movement
• Comfortable positioning of the patient‘s head
• Optimal position for children and elderly patients
• Flexible articulating headrest
• Optional: round upholstery, double-jointed headrest and child headrest
CONTACT LITE COMFORT
• Double-jointed headrest
• Quick and easy positioning
• Comfortable positioning of the patient‘s head
• Optimal position for children and elderly patients
• Optional: single-jointed headrest with oblong or round upholstery
Ritter Contact Series
Dentist elements
RITTER CONTACT SERIES HOVER ARM
A modern and timeless design language, smooth and easy-to clean surfaces characterize the floating arm. The smooth-running floating arm, supported by a gas pressure spring, is activated by movement. When the handle is released, the brake becomes active and prevents unintentional movement of the dentist element.

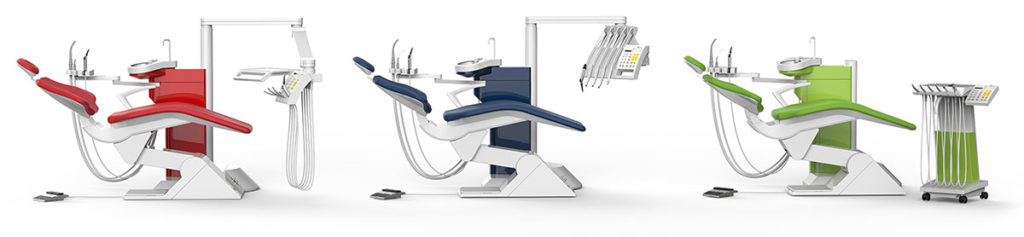

All Ritter treatment units of the Contact series are available in the different versions H, HC, S and C to optimally support each user in his working method.

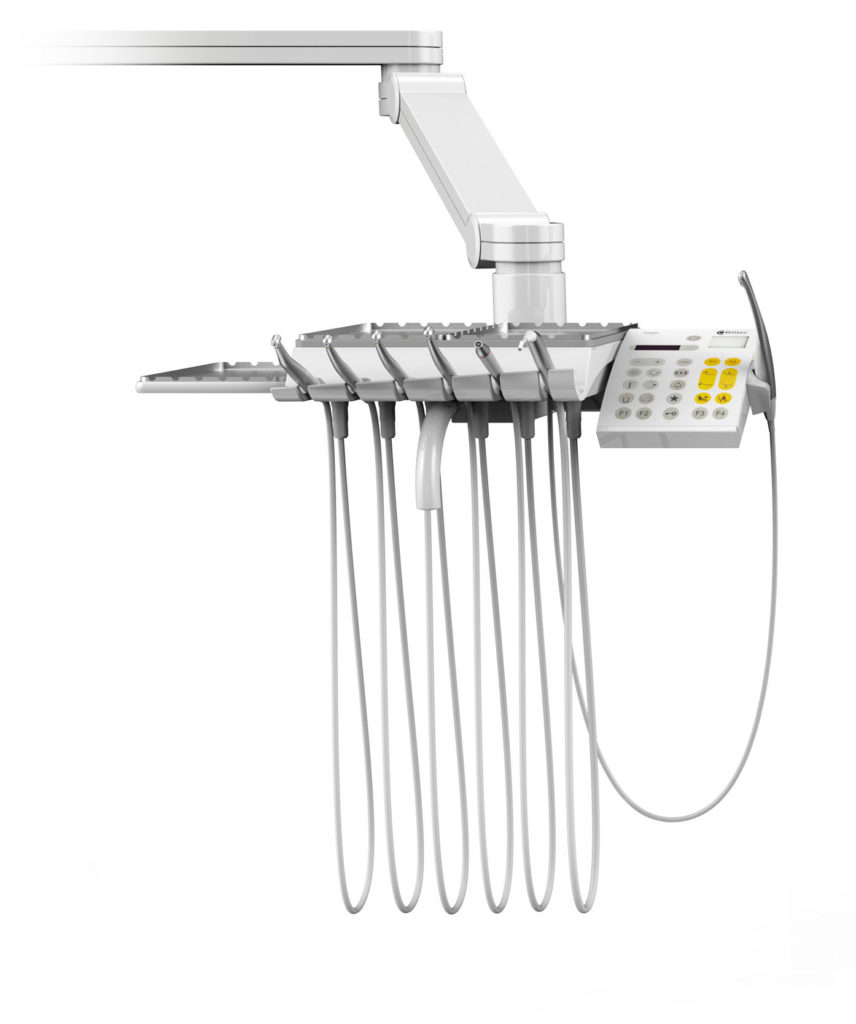

HC-VERSION
HANGING HOSES WITH CART HEAD
The HC-version‘s cartridge tray is more conventionally designed than the H-version‘s, with the tray directly above the instruments.
The cart head can hold up to six instruments in any order, controlled by the foot pedal.

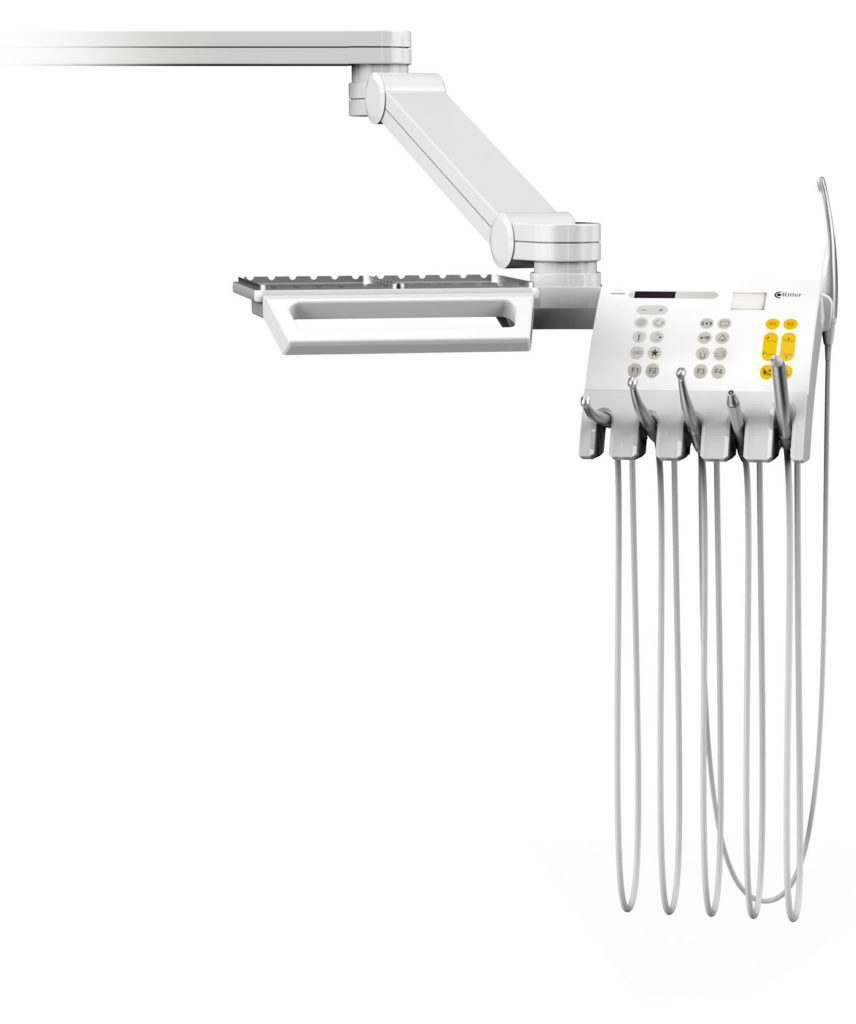

H-VERSION
HANGING HOSES
In the H-version, the dentist element on the floating arm is equipped with hanging tubes and a large tray support.The dentist element can be moved very close to the patient and allows optimal handling with a small working circle of the five instruments.

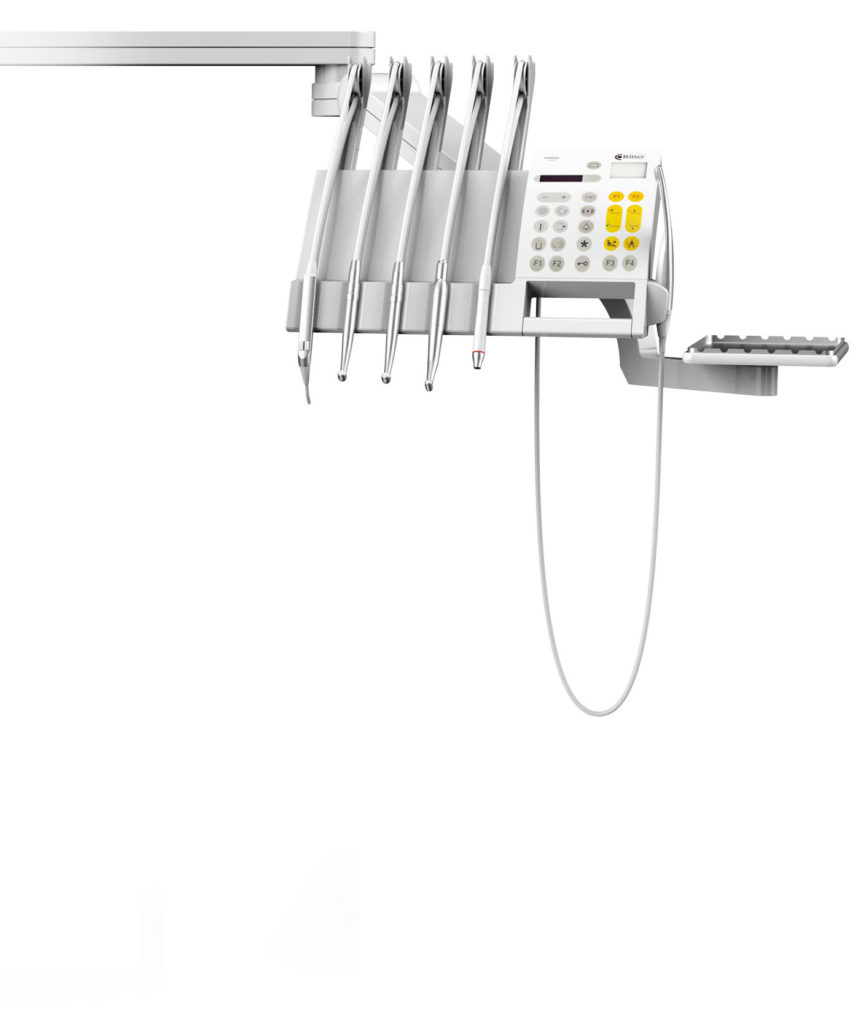

S-VERSION
SWINGING HOSES
Each instrument can be easily and ergonomically removed and returned without effort. The proven swing-arm system minimizes contamination, as the tubes have no contact with the floor and thus slide cleanly into their resting positions.

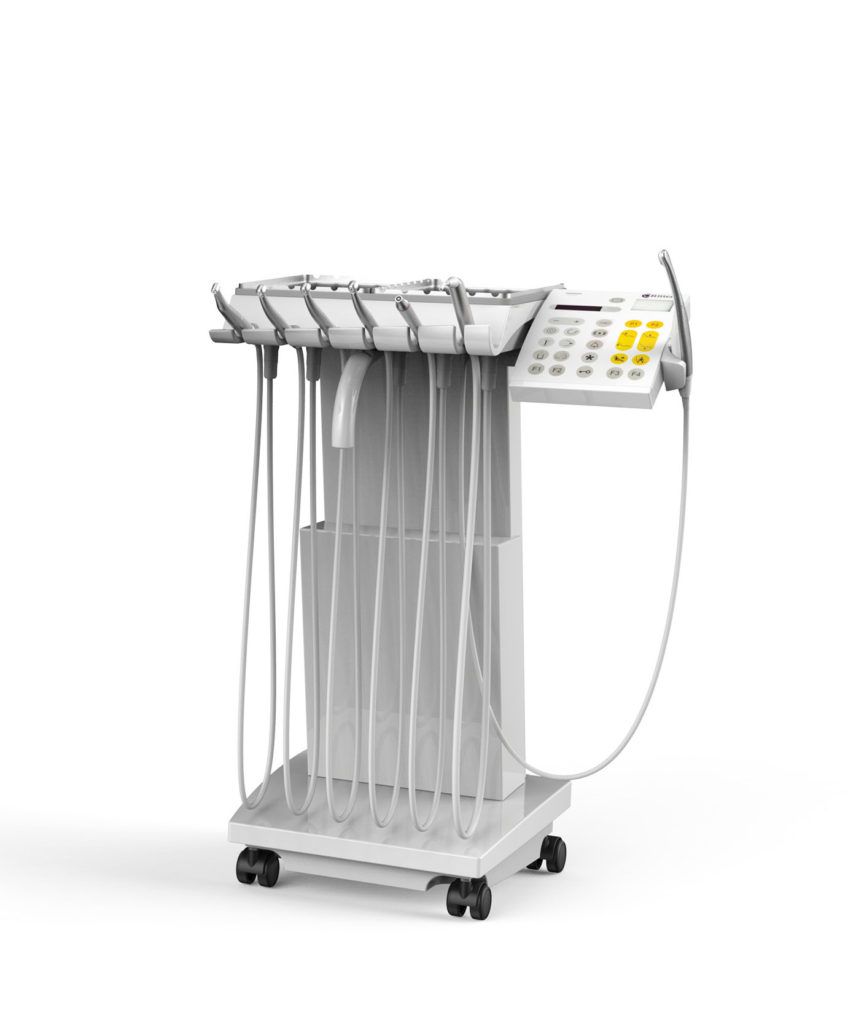

CART VERSION
The flexibility of the mobile cart is undisputed: It can be moved freely around the entire treatment unit and guarantees optimal freedom of movement, especially in tight spaces. The cart version can be excellently combined with a large unit-mounted tray.
Ritter Contact Series
Control

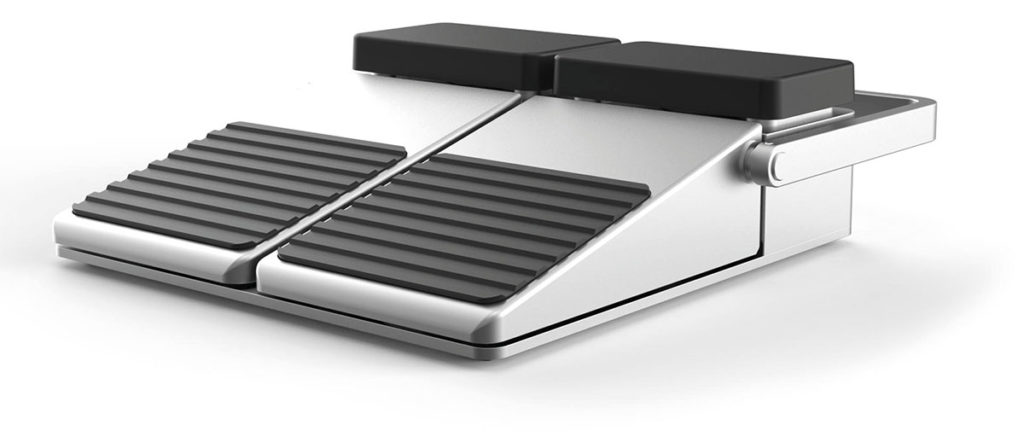

FOOT CONTROLLER
The Ritter control elements are highly resilient. The operating time and cost efficiency are enormous due to their simplicity.
No multiple key assignment: the Ritter control system provides a dedicated key for each function. The result is simple, intuitive control and operation of the functions. This direct and simple handling is particularly noticeable during demanding treatments.
• Easy and comfortable operation
• Stable stand
• Transmission-safe operation due to the wired connection
• Individual control of the functions
• Perfect weight balance when shifting with the tip of the foot
• Material: metal and plastic

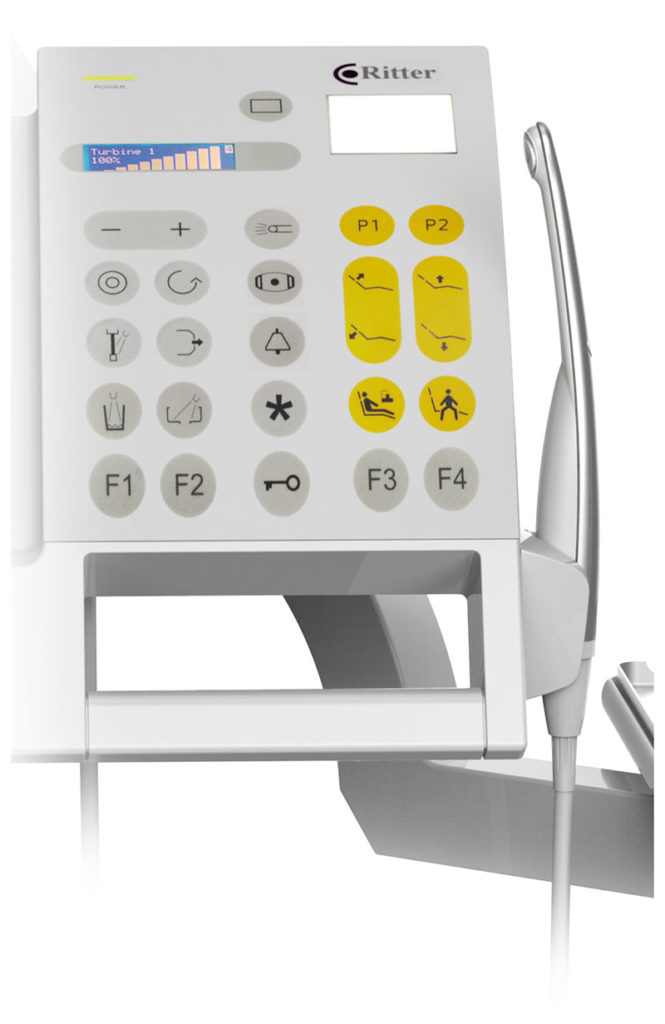

MULTIFUNCTION DISPLAY
The clear and concise multifunction display allows easy chair and instrument control. The alphanumeric display shows the status of the respective instruments. Speed, torque of turbines and motors, treatment positions of the patient chair as well as presets of up to four different users can be freely programmed.
INTRAORALE KAMERA
Precise images with Easy Touch
The optical system of the SOPRO 617 camera is equipped with an aspherical lens that minimizes distortion and produces geometrically correct images. Thanks to the large angle of view, even hard-to-reach regions of the mouth are perfectly displayed. With the touchsensitive button, you create snapshots without moving the handpiece. So you can always rely on sharp images. These can be displayed via an external screen.
• Bright, clear image in all conditions
• Plug & Play technology – install and work
• Integration via USB2 port
• Autofocus function with maximum depth of field
• (5 mm to infinity)
• Max. Angle of view of 105° due to the curved shape and round headpiece
• Uniform illumination of the oral cavity, thanks to light and powerful LEDs (shadows and reflections kept to a minimum)
• Exceptionally high image quality thanks to a lens that minimizes distortion
• Various mounting options (table, wall version and on the dental unit)
• Illuminance: 2 lux (8 LEDs)
Ritter Contact Series
Assistant element
Optimize your workflow.
Whether standing, sitting or at 12 o’clock – the freely positionable
assistance element is there for you in every situation.

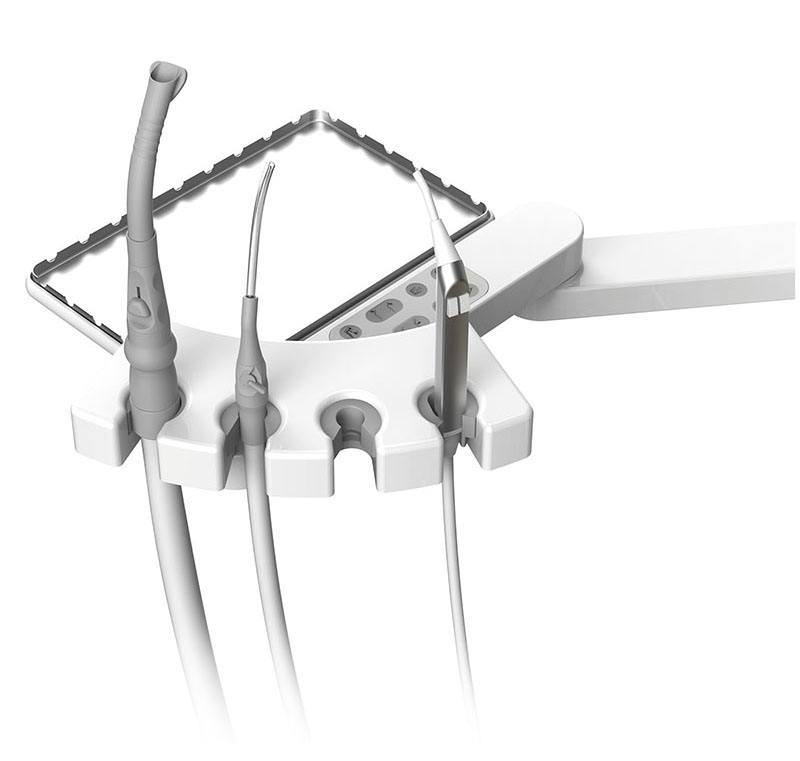

ASSISTANT ARM TWOPARTETD WITH PANEL
The 2-part instrument arm of the assistant element allows flexible positioning in any patient position and treatment situation. All main functions of the treatment unit can be controlled with the membrane keypad integrated flush with the surface of the articulated arm.
The sophisticated and neat suspension effectively prevents the tubes from twisting.

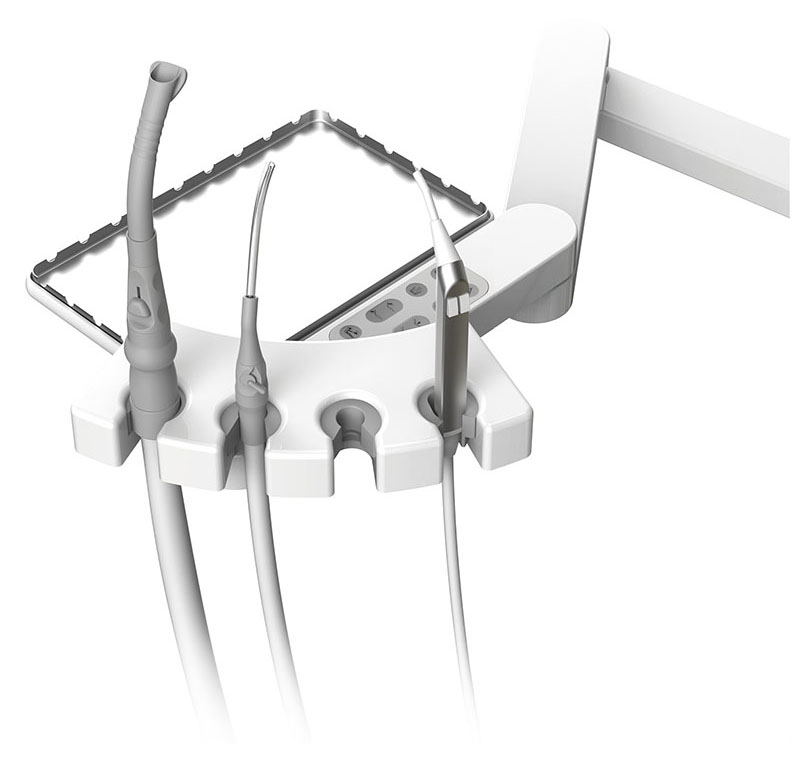

ASSISTANT ARM THREEPARTETD WITH PANEL
The 3 freely swiveling joints are space-saving and flexible in positioning. Here, too, all main functions of the treatment center can be controlled with the membrane keypad integrated flush with the surface of the articulated arm.
It is possible to place a third and fourth instruemt such as a curing light.
Ritter Contact Series
Waterunit
The water unit of the Ritter Contact series is designed for fast and effective cleaning. All critical areas and components are easy to reach and disinfect. The surfaces are smooth, without corners and edges and can often be removed with a flick of the wrist.

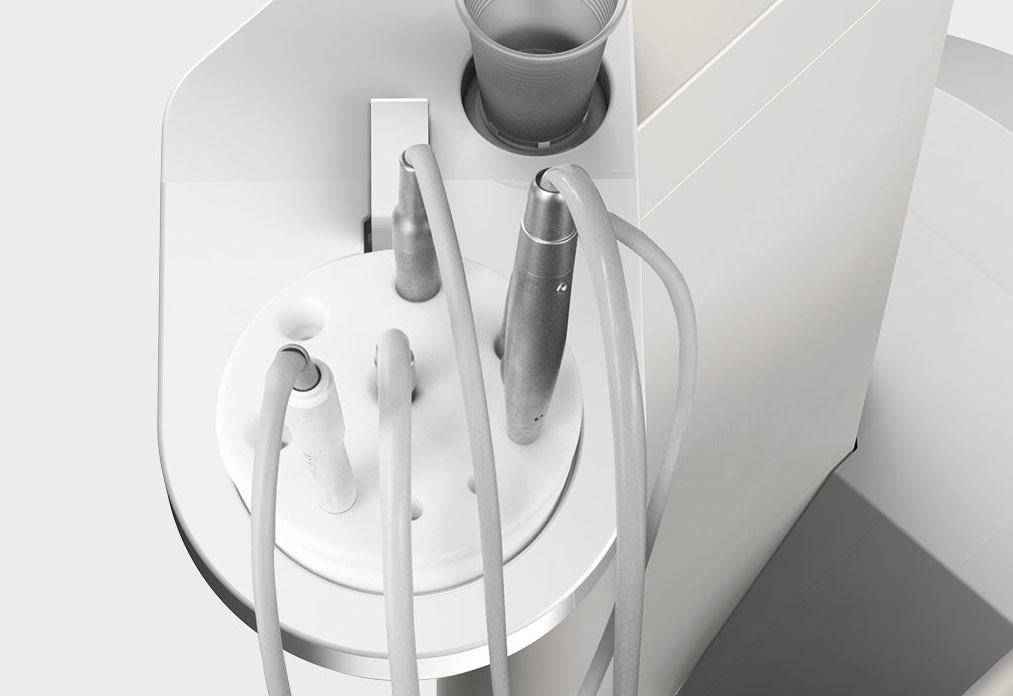

INSTRUMENT CLEANING SUPPORT
The rinsing hood enables hygienically perfect disinfection in a simple manner. The hood is placed on the cuspidor.

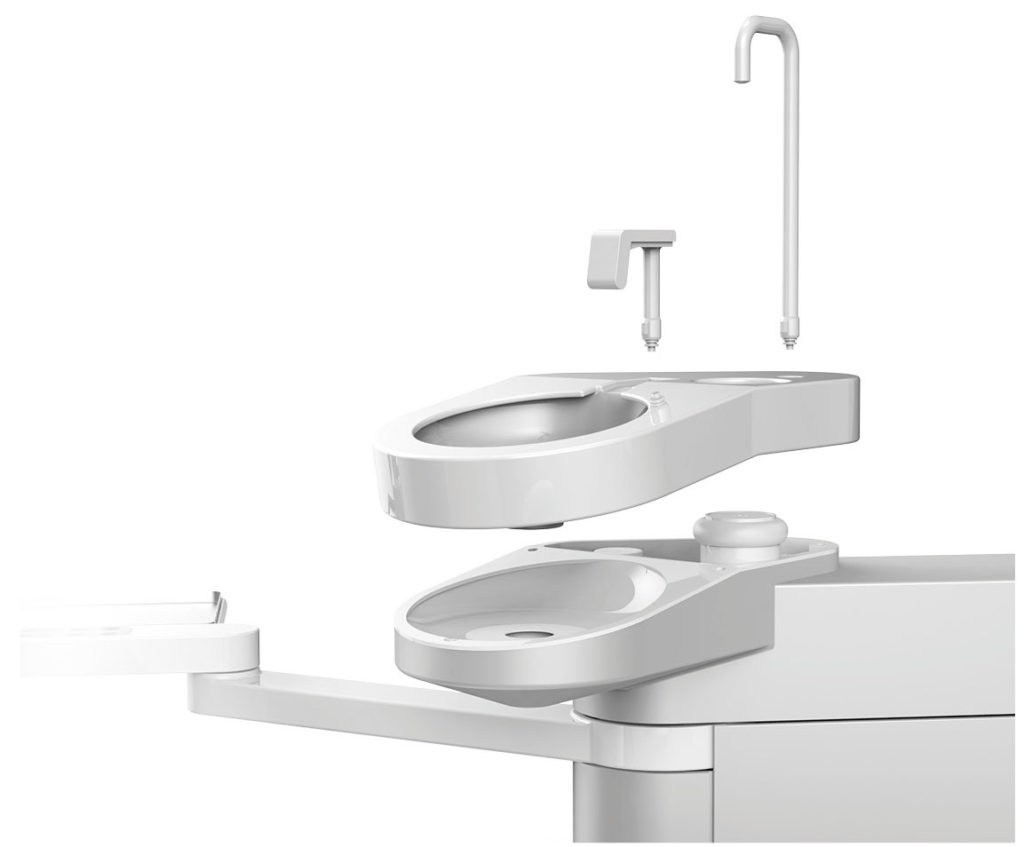

DETACHABLE AND THERMODISINFECTABLE CUSPIDOR
The ceramic cuspidor is removable, so contaminated components can be quickly removed and disinfected. The cuspidor is optionally available in a swiveling version..

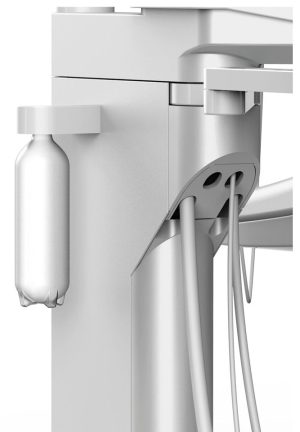

AQUA BOTTLE SYSTEM
With the bottle solution, all internal water paths to the patient are completely disinfected. The METASYS WEK internal disinfection system is available as an additional option.
Ritter Contact Series
Accessories
OPERATING LIGHTS
A long working day is comfortably mastered with good equipment. Precise illumination of your patient is an essential prerequisite for this.
A more detailed description can be found here.

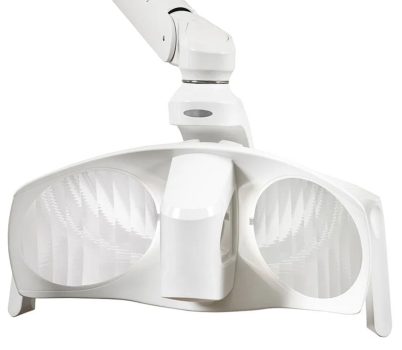

EVA LED WITH Switch

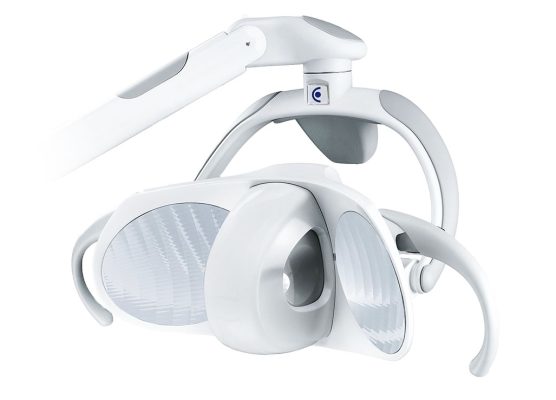

MAIA LED WITH SENSOR

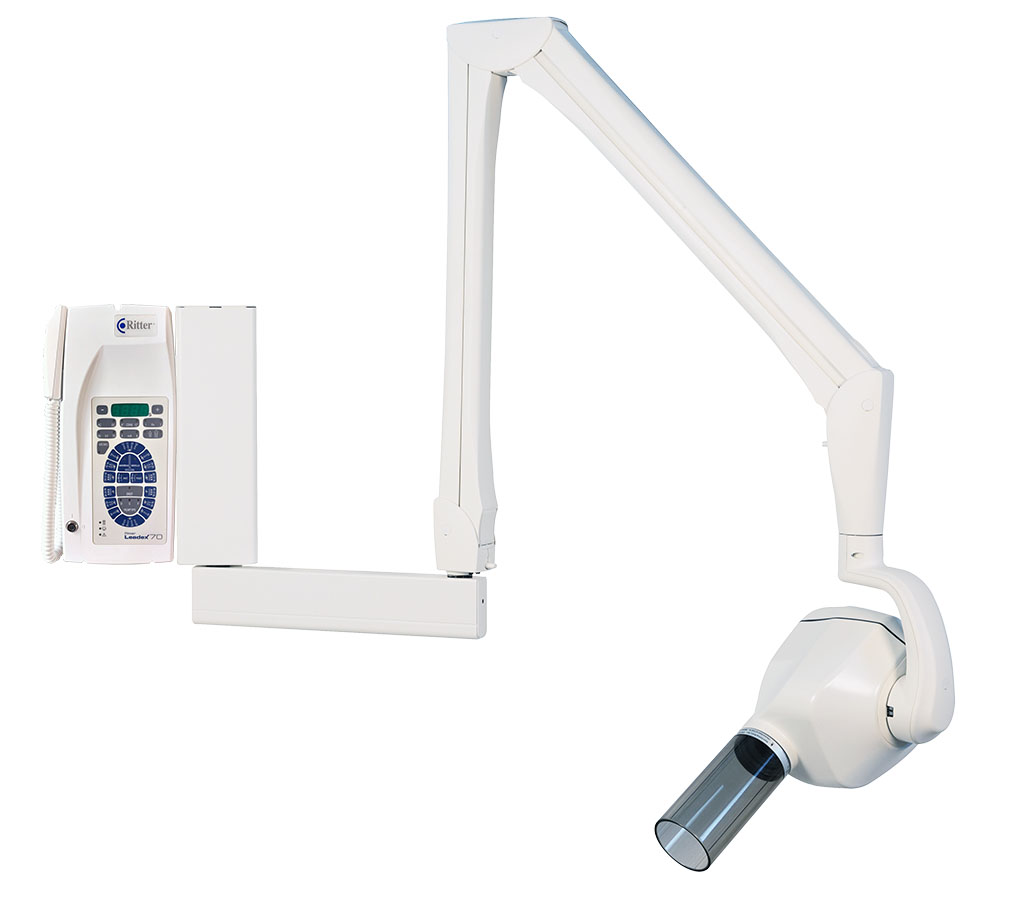

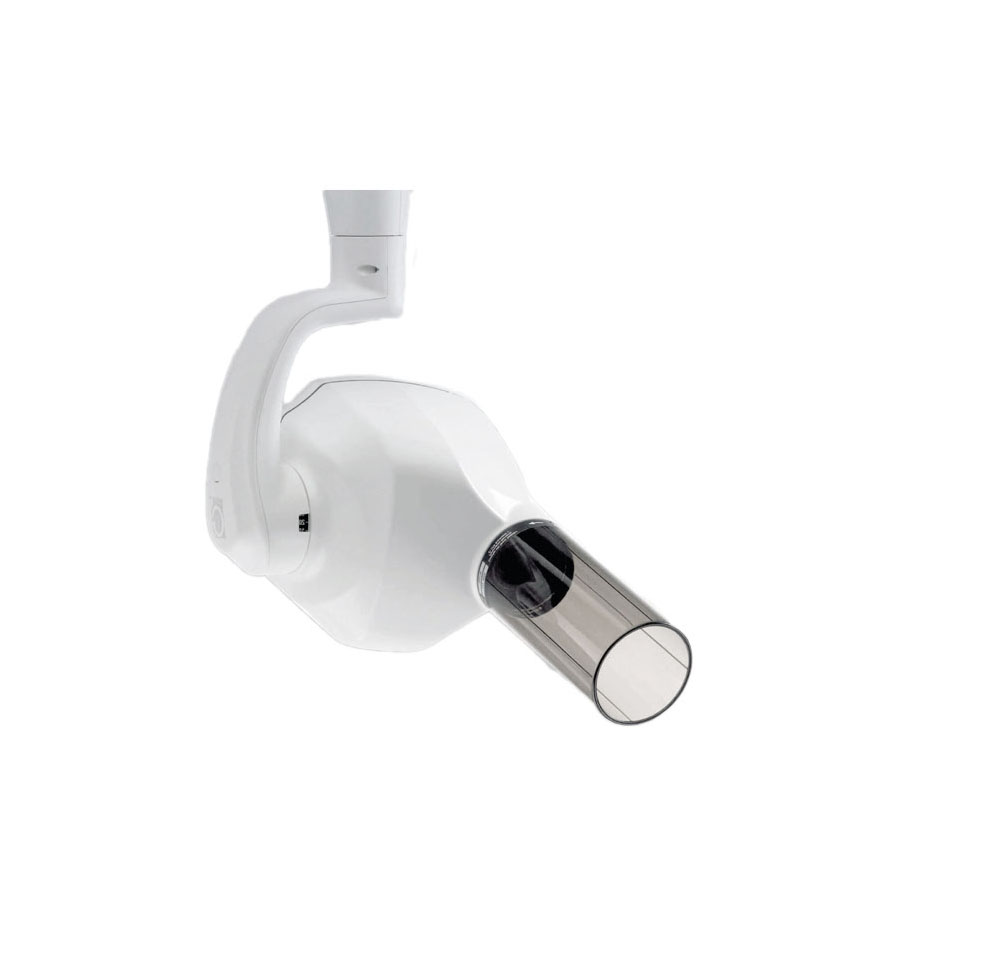

LEADEX70 – X-RAY UNIT
All it takes is the press of a button to switch from conventional
(based on X-ray film technology) to digital image acquisition using
sensor technology.
A more detailed description can be found here.

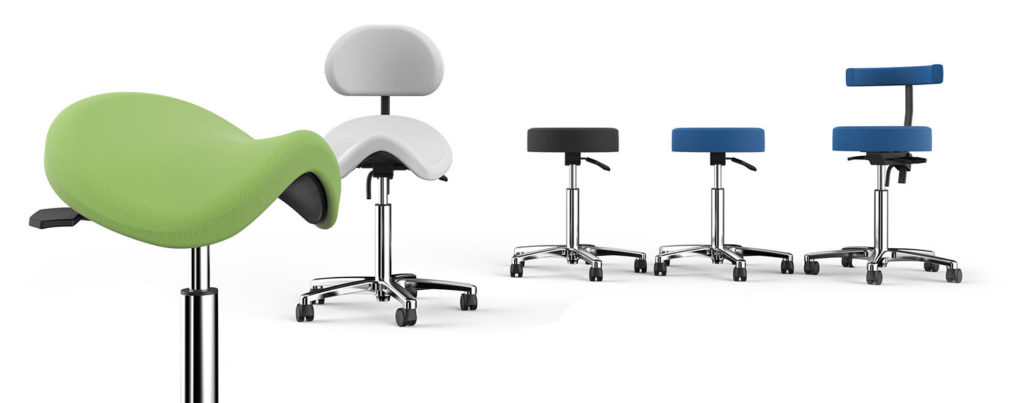

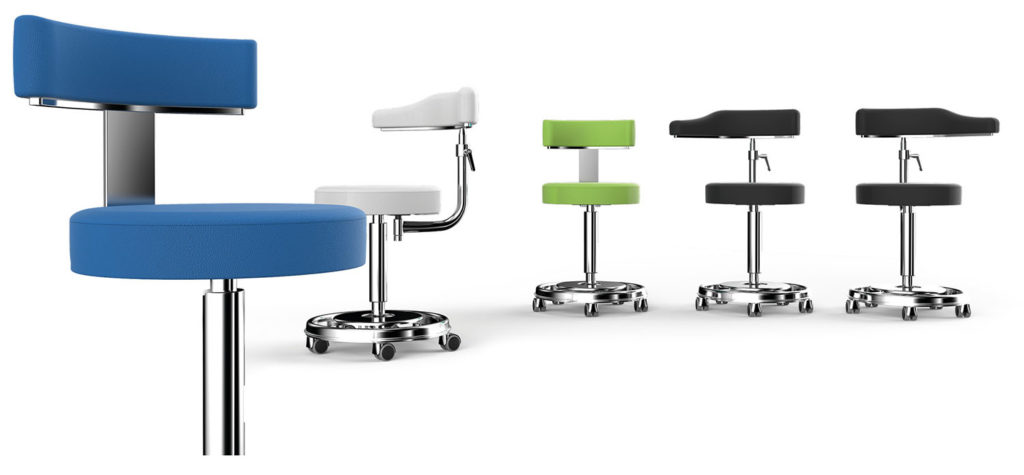

STOOLS
The Ritter work stools provide optimum support for any posture. They flexibly adapt to your posture – whether through the comfortable seat cushion, the free tilt adjustment or the stepless height adjustment.
A more detailed description can be found here.
MobiloRest
gira-flex
Ritter Contact Series
Upholstery Colors

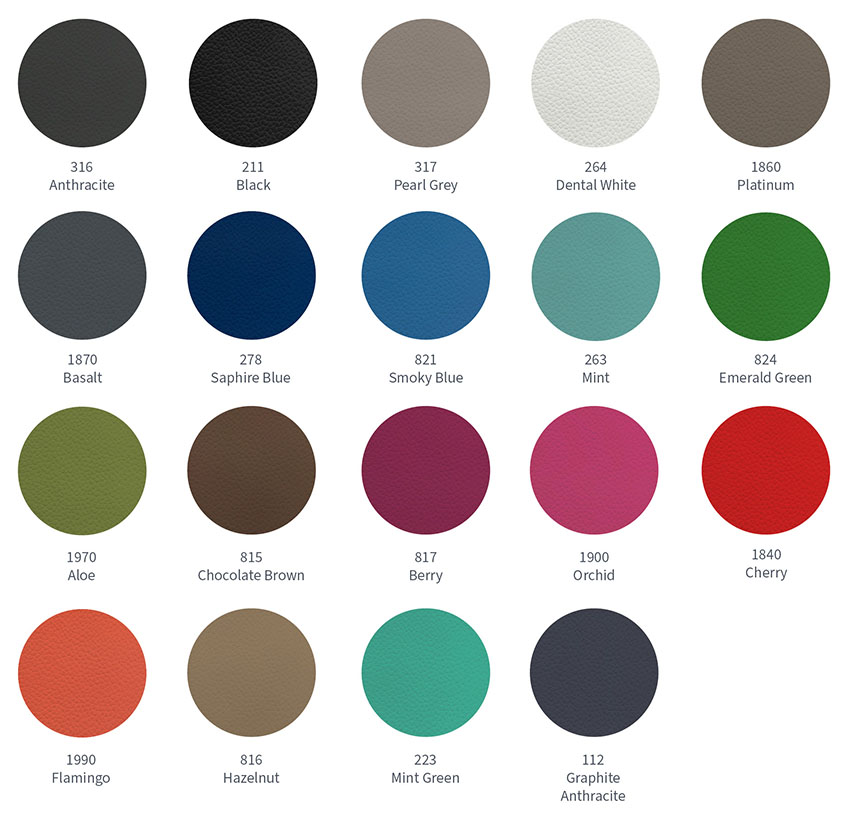

Upholstery Colors
A variety of upholstery colors add a custom touch to your practice. The upholstery fabrics are standard with Ritter comfort fabric, which provides cleanliness and freshness – without leaving a sticky feeling.
Illustrations may differ in color and texture from actual upholstery cover.
SPECIAL COATINGS
Special painting of the entire unit as well as partial painting of water unit or cart are possible in all RAL and metallic colors.
Standard paint color is RAL 9003/signal white
Ritter Contact World
Features and options
PATIENT CHAIR
● Trendelenburg movement
● Saving of positions
● Safety switch
● Double-jointed headrest
○ Single-jointed headrest
● Left armrest fix
○ Right armrest moveable
● Seamless upholstery
● foot control pedal
○ External device connection
DENTIST ELEMENT
● 3F syringe Luzzani Minilight
○ 3F syringe TopFlex
○ 6F syringe TopJet
○ 6F syringe Luzzani Minilight
● 1st F.O. outlet with light
● 2nd F.O. outlet with light
● 1st motor SLM-E Type 810 Ritter brushless LED
○ 2nd motor SLM-E Type 810 Ritter brushless LED
○ ACTEON scaler SP NEWTRON
○ EMS scaler PIEZON NO PAIN LED
● Scaler Ritter S oder E LED
● Graphical display
● 4 user levels
○ Instrument heating
● X-ray viewer
● Tray stainless steel
● Silicone pad without trays*1
○ Double tray support for 2 trays*2
○ Lower double tray support for 2 trays*2
○ Additional Single tray holder on the pedestal*3
○ Additional single tray exposure at the dentist element*4
*1 for H-, HC- & C-version
*2 for S-Version without stainless steel tray
*3 für H-, S- & HC-Version ohne Edelstahltray
*4 for H, S & HC version without stainless steel tray
*5 without stainless steel tray
ASSISTANT ELEMENT
○ 3F syringe Luzzani Minilight
○ 3F syringe TopFlex
○ 6F syringe TopJet
○ 6F syringe Luzzani Minilight
● Small and large suction hoses
● Selective controller for suction hose
● Assistant arm twopartetd with panel
○ Assistant arm threepartetd with panel
○ Additional single tray holder on assistant element*5
WATER UNIT
● Detachable and thermodisinfectable cuspidor
○ Swivelling spittoon bowl
○ Instrument cleaning support
● Place selection valve
○ Spittoon valve Dürr
○ CAS 1 Combi-Separator Dürr
○ CS 1 Combi-Sepamatic Dürr
○ METASYS MST 1 amalgam separator
○ METASYS WEK water decontamination system
● Water bottle system
○ Cup heating
X-RAY EQUIPMENT
○ Leadex70 DC
OPERATING LIGHTS
● EVA LED with switch
or MAIA LED with sensor
STOOLS
○ Mobilorest 156/156L/158 m
○ Gira-Flex A, A-PLUS m
○ Gira-Flex D, D-PLUS m
○ Footring for GIRA-FLEX A, A-Plus
Multimedia
○ Intraoral Camera SOPRO 617 m
○ Monitor TFT 22” Neovo
Ritter Contact Lite Comfort
Upholstery Colors
UPHOLSTERY COLORS
A variety of upholstery colors give your practice an individual touch. The vegan upholstery fabrics are equipped as standard with the Ritter comfort fabric, which conveys cleanliness and freshness – without leaving a sticky feeling.
Illustrations may differ in color and structure from the actual upholstery cover.
SPECIAL COATINGS
Standard paint color is RAL 9003/signal white
Ritter Contact Lite Comfort
Features and options
● Standard ○ Option
PATIENT CHAIR
● Trendelenburg movement
● Saving of positions
● Safety switch
○ Single-jointed headrest
● Double-jointed headrest
● Left armrest fixed
○ Right armrest moveable
● Seamless upholstery
● foot control pedal
○ External device connection
DENTIST ELEMENT
● 3F syringe Minilight
○ 3F syringe TopFlex
○ 6F syringe TopJet
○ 6F syringe Luzzani Minilight
● 1st F.O. outlet with light
● 2nd F.O. outlet with light
● 1st motor SLM-E Type 810 Ritter brushless LED
○ 2nd motor SLM-E Type 810 Ritter brushless LED
○ ACTEON scaler SP NEWTRON
○ EMS scaler PIEZON NO PAIN LED
● Scaler Ritter S oder E LED
● Graphical display
● 4 user levels
○ Instrument heating
● X-ray viewer
● Silicone pad without trays*1
○ Double tray rack for 2 trays (rotatable)*2
○ Double tray rack for 2 trays (rotatable), 10 cm deep*2
○ Add. Single tray holder on the upright*3
○ Additional single tray holder on the dentist element*4
*1 for H-, HC- & C-Version
*2 for S version without stainless steel tray
*3 for H, S & HC version without stainless steel tray
*4 for H version without stainless steel tray
*5 without stainless steel tray
ASSISTANT ELEMENT
○ 3F syringe Minilight
○ 3F syringe TopFlex
○ 6F syringe TopJet
○ 6F syringe Luzzani Minilight
● Small and large suction hoses
● Pneumatische Selektivablage
● Assistant arm twopartetd with panel
○ Assistant arm threepartetd with panel
○ Additional single tray holder on the assistant element*5
WATER UNIT
● Detachable and thermodisinfectable cuspidor
○ Swivelling spittoon bowl
● Instrument cleaning support
● Place selection valve
○ Spittoon valve Dürr
○ CAS 1 Combi-Separator Dürr
○ CS 1 Combi-Sepamatic Dürr
○ METASYS MST 1 amalgam separator
○ METASYS WEK water decontamination system
● Water bottle system
○ Cup heating
X-RAY EQUIPMENT
○ Leadex70 DC
OPERATING LIGHTS
● POLARIS LED with Sensor
or EVA LED with Schalter
STOOLS
○ Mobilorest 156/156L/158 m
○ Gira-Flex A, A-PLUS m
○ Gira-Flex D, D-PLUS m
○ Footring for GIRA-FLEX A, A-Plus
Multimedia
○ Intraoral Camera SOPRO 617 m
○ Monitor TFT 22” Neovo
